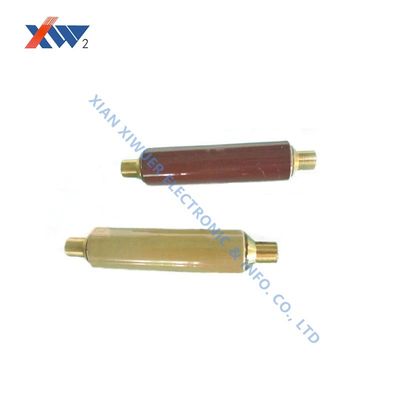

Stable 3.6kVAC Live Line Capacitor with 32kVAC Withstand Voltage and 40kV Lightning Impact for High Voltage Insulation

  • Stable 3.6kVAC Live Line Capacitor with 32kVAC Withstand Voltage and 40kV Lightning Impact for High Voltage Insulation
Menşe yeri XIAN, ÇİN
Marka adı XIWUER
Sertifika ISO9001,ISO14001,ISO45001,CCC
Model numarası CT8-2-3.6kV-230pF
Min sipariş miktarı 1 adet
Fiyat pazarlık edilebilir
Ambalaj bilgileri karton
Teslim süresi 5-7 GÜN
Ödeme koşulları L/C,T/T
Yetenek temini Yılda 3.000.000 adet
Ürün ayrıntıları
Kapasite 210pF~240pF Nominal Gerilim 3.6kV AC
Dielektrik kaybı 1V, 1KHz, 25°C ≤%1,2 Dayanım Gerilimi 32kVAC·5 dk
Kısmi deşarj 3.96kVAC<10PC Yıldırım çarpması 40Kv
Mesaj bırakın
Ürün Açıklaması
Stable 3.6KVAC Live Line Capacitor High Voltage Insulation With 32kVAC·5min Withstand Voltage And 40kV Lightning Impact
Live line capacitor 3.6KVAC for capacitive insulator capacitor stable ceramic capacitor high voltage applications.
Features
  • Store under safe, dry and clean environment
Applications

Ceramic multilayer capacitors are mainly used in low-power high-voltage multiplier circuit modules:

  • Electrostatic generating circuit
  • X-ray equipment
  • High-voltage negative ion generator
Technical Parameters
Nominal Voltage Nominal Capacitance Capacitance Testing Frequency: 1kHz ±20% Testing Voltage: 1V ±0.2V Withstanding Voltage (Insulating Oil) Partial Discharge Lightning Impulse kV (Peak Value) (Insulating Oil) 1.2/5us
3.6kV AC230210~24032kV AC 5min3.96kV AC ≦10pC40
7.2kV AC54~641kV AC 5min7.92kV AC ≦10pC60
4036~44
150140~170
12kV AC54~652kV AC 5min13.2kV AC ≦10pC75
2018~22
4036~44
5045~55
125110~140
200180~210
300270~330
24kV AC54~670kV AC 5min26.4kV AC ≦10pC125
1513~1726.4kV AC ≦10pC
3535~4226.4kV AC ≦4pC
5045~5026.4kV AC ≦10pC
8070~9026.4kV AC ≦10pC
150125~18026.4kV AC ≦5pC
200/400/500180~22026.4kV AC ≦10pC
40.5kV AC54~6115kV AC 5min44.5kV AC ≦10pC185
108.5~11.544.5kV AC ≦5pC
4540~5044.5kV AC ≦10pC
10090~11044.5kV AC ≦10pC
Company Overview

Xian Xiwuer Electronic and Info. Co., Ltd is a wholly state-owned company with a registered capital of CNY 101.465 million (exchanged to USD15.85 million), owning total assets of CNY315 million (traded to USD 49.22 million). It was established in 1976. Currently, it has about 460 employees, with an annual sales income of CN280 million (exchanged to USD43.75 million). The company has four production and business bases covering an area of 43052 square meters, and a construction area of more than 50000 square meters.

The company has 8 persons with master's degrees, more than 80 engineers with senior technical titles 12 technicians who have been awarded Experts with Outstanding Contributions by the Xian municipal government, and 1 expert who has been enjoying a special allowance from the State Council.

Main Products
Smart Embedded Epoxy Pole
Integrated Instrument Transformer
Capacitive Voltage Divider
High Voltage Capacitor Rod
High Voltage Film Capacitor
High Voltage Resistor
Primary and Secondary Integrated Intelligent assembly and components with the function of voltage measurement, current measurement, protection, temperature monitoring, and power supply
Medium-High Voltage components/parts/ assembly
Surge Protective Device for Power Supply System
Chips for lightening devices
Zinc Oxide Varistor
Thermistor

Major Customers: ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric and etc.

The company has the provincial Technical R&D Center with developing and manufacturing experiences of the key products HV Ceramic Capacitor, SPD, Varistor, Thermistor for nearly 20 years. There have been 32 patented technology, 4 invention patents, and 4 national key new products.

The company has achieved ISO9001, ISO14001, and ISO45001 approval and has advanced production equipment including 26m large sintering tunnel furnaces, 8 automatic assembly lines, the largest energy impulse current generator and specialized test equipment.

Products have obtained UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH Certification. The company operates two routine test laboratories with advanced lightning testing equipment and environmental testing equipment.
