High Voltage Capacitor Power Supply with 27VAC/24VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting for Reclosers

  • High Voltage Capacitor Power Supply with 27VAC/24VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting for Reclosers
  • High Voltage Capacitor Power Supply with 27VAC/24VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting for Reclosers
Menşe yeri Xian-Çin
Marka adı XIWUER
Sertifika ISO
Model numarası LEDZW-12
Min sipariş miktarı 1 adet
Fiyat pazarlık edilebilir
Ambalaj bilgileri KARTON
Teslim süresi 10-15 Gün
Ödeme koşulları L/C,T/T
Yetenek temini Yılda 1.000.000 adet
Ürün ayrıntıları
Vurgulamak

220VAC±10% Output Voltage High Voltage Capacitor Power Supply

,

IP67 Waterproof Level Power Supply Device

,

Insulating Resin Potting Capacitive Voltage Extraction Device
Mesaj bırakın
Ürün Açıklaması
High Voltage Capacitor Power Supply —— A new generation of power supplies specifically designed for reclosers
Product Overview

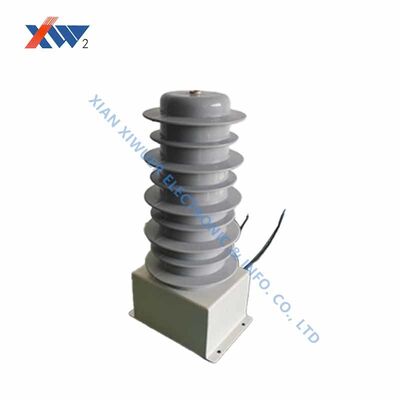

High Voltage Capacitor Power Supply - LEDZW-12

Electrical Performance Specifications
Serial Number Categories Unit Index
1 Output Voltage V 220VAC±10%
2 Output Power W 10
3 Working Temperature ºC -40~+70
4 Capacitor Dimension mm Φ129*330
5 Main Size mm 186*135*75
6 Heat Dissipation Structure - Insulating Resin Potting
7 Package Structure - Plastic & Metal Shell
8 Waterproof Level - IP67
Technical Diagram
High Voltage Capacitor Power Supply with 27VAC/24VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting for Reclosers 0
High Voltage Capacitor Power Supply block diagram and terminal connection schematic
Advantages and Innovations
  • High-power DC output is leading in China
  • Adopts high-voltage capacitor series transformer energy harvesting, with overvoltage protection and amplitude limiting circuits; capacitors can optimize circuit performance
  • Compared with similar technologies, it has large energy-harvesting power, flexible combination, wide voltage and power coverage, solves the problem of traditional PT ferroresonance, and reaches the leading level in China
  • Features high performance and safety, easy installation, stability and reliability, effective isolation, and low power consumption
