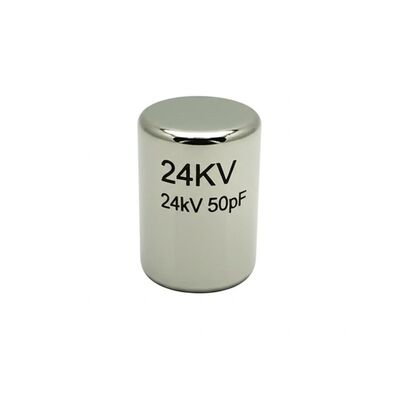

High Voltage Ceramic Capacitor 24kV 50pF with Low Dissipation Factor for High Voltage Coupling and Coaxiality < 2.0

  • High Voltage Ceramic Capacitor 24kV 50pF with Low Dissipation Factor for High Voltage Coupling and Coaxiality < 2.0
Menşe yeri XIAN, ÇİN
Marka adı XIWUER
Sertifika ISO9001,ISO14001,ISO45001
Model numarası CT8-2-24kV-50pF
Min sipariş miktarı 1 Adet
Fiyat pazarlık edilebilir
Ambalaj bilgileri karton
Teslim süresi 5-7 gün
Ödeme koşulları L/C,T/T
Yetenek temini yılda 8.000.000

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Capacitance 10kV , 50Hz , 25℃ 50pF±20% Dielectric loss at 10kV and 50Hz < 0.12 at 25°C
Working voltage 24KV Welding force test Minimum 20N 25°C
Vurgulamak

Coaxiality High Voltage Ceramic Capacitor

,

Low Dissipation Factor HV Ceramic Capacitor

,

High Voltage Coupling Ceramic Capacitor
Mesaj bırakın
Ürün Açıklaması
Capacitor Ceramic High Voltage CT8-2-24kV-50pF
Low Dissipation Factor High Voltage Coupling Device
HV Ceramic Capacitors CT8-2-24kV-50pF ISO Certificated For Charged Display
Key Features
  • Excellent performance in pulse and fast discharge applications
  • Low dissipation factor (0.05% low loss designs available upon request)
  • High coaxiality < 2.0
Applications
  • High-voltage columns for HV accelerator colliders
  • High voltage coupling devices
Dimensions
High Voltage Ceramic Capacitor 24kV 50pF with Low Dissipation Factor for High Voltage Coupling and Coaxiality < 2.0 0
Technical Specifications
Voltage Rating Nominal Capacitance (pF) Nominal Capacitance Range
Test Frequency:1kHz±20%
Test Voltage:1V±0.2V		 Power Frequency Withstand Voltage
(in the insulation oil)		 Partial Discharge Lightning Impulse (kV)
(Maximum Peak Voltage)
(in the insulation oil)
3.6kVac230210~24032kV AC/5min3.96kV AC≤10PC40
7.2kVac54~641kV AC/5min7.92kV AC≤10PC60
4036~44
150140~170
12kVac54~652kV AC/5min13.2kV AC≤10PC75
2018~22
4036~44
5045~55
125110~140
200180~210
300270~330
24kVac54~670kV AC/5min26.4kV ac≤10PC125
1513~1726.4kV ac≤10PC
3535~4226.4kV ac≤4PC
5045~5026.4kV ac≤10PC
8070~9026.4kV ac≤10PC
150125~18026.4kV ac≤5PC
200/400/500180~22026.4kVac≤10PC
40.5kVac54~6115kV AC/5min44.5kV ac≤10PC185
108.5~11.544.5kV ac≤5PC
4540~5044.5kV ac≤10PC
10090~11044.5kV ac≤10PC
High Voltage Ceramic Capacitor 24kV 50pF with Low Dissipation Factor for High Voltage Coupling and Coaxiality < 2.0 1
Manufacturer Overview

Xian Xiwuer Electronic & Info. Co., Ltd. is a leading Chinese manufacturer specializing in electronic components. With a 4,000㎡ facility in Xi'an and 2,300 employees (including 580 technicians and 135 engineers), we maintain total assets of 315 million RMB Yuan.

Our product portfolio includes:

  • Varistors & SPD (Surge Protective Devices)
  • HV Ceramic Capacitors
  • Capacitive Voltage Dividers
  • Thermistors

We operate advanced production lines with equipment imported from Japan, America, Belgium, and Switzerland. Our quality management system is certified to ISO 9001, ISO 18000, and holds CCEE, UL, VDE & TUV approvals.

Certifications
High Voltage Ceramic Capacitor 24kV 50pF with Low Dissipation Factor for High Voltage Coupling and Coaxiality < 2.0 2 High Voltage Ceramic Capacitor 24kV 50pF with Low Dissipation Factor for High Voltage Coupling and Coaxiality < 2.0 3 High Voltage Ceramic Capacitor 24kV 50pF with Low Dissipation Factor for High Voltage Coupling and Coaxiality < 2.0 4
