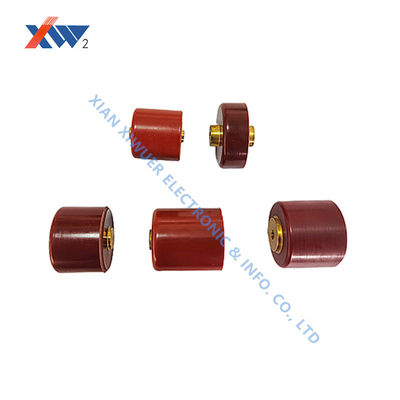

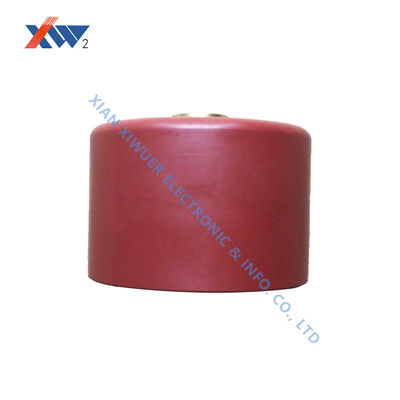

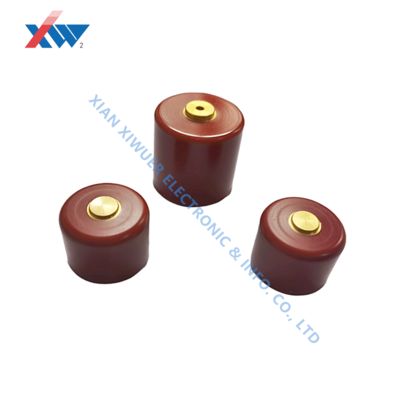

High-voltage doorknob capacitor with 60,000-hour design life featuring anti-aging ceramic dielectric and low-loss technology for industrial microwave heating

  • High-voltage doorknob capacitor with 60,000-hour design life featuring anti-aging ceramic dielectric and low-loss technology for industrial microwave heating
  • High-voltage doorknob capacitor with 60,000-hour design life featuring anti-aging ceramic dielectric and low-loss technology for industrial microwave heating
  • High-voltage doorknob capacitor with 60,000-hour design life featuring anti-aging ceramic dielectric and low-loss technology for industrial microwave heating
Menşe yeri XIAN, SHANNXI ÇİN
Marka adı XIWUER
Sertifika ISO9001,ISO14001,OHSAS18001
Model numarası CT8-1-40kV-500pF
Min sipariş miktarı 1 parça
Fiyat pazarlık edilebilir
Ambalaj bilgileri Karton
Teslim süresi 10-15 gün
Ödeme koşulları L/C, T/T
Yetenek temini Yılda 4.000.000 adet

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Vurgulamak

60

,

000-hour design life high-voltage doorknob capacitor

,

Anti-aging ceramic dielectric HV ceramic capacitor
Mesaj bırakın
Ürün Açıklaması
High-Voltage Door Handle Capacitor for Industrial Microwave Heating Equipment
Technical Specifications

No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5

The cornerstone of 24/7 continuous operation in industrial microwave heating systems, our high-voltage door-handle capacitors deliver unmatched reliability for critical applications including ceramic sintering, powder metallurgy, and chemical material processing.
Continuous Operation Demands
Industrial microwave equipment requires components that withstand extreme conditions:
  • Continuous high-voltage stress near rated values
  • Significant ripple current causing continuous heating
  • High-temperature environments from magnetron and transformer heat
Engineered for Longevity
Our comprehensive material and process optimizations ensure exceptional performance:
  • Anti-Aging Ceramic Dielectric: Specially stabilized materials maintain stable capacitance values under high electric fields
  • Low-Loss Technology: Optimized electrodes and sintering processes minimize self-heating
  • Enhanced Heat Dissipation: Metal casing acts as efficient heat sink with thermal simulation-optimized design
Verified Reliability
We guarantee a design life exceeding 60,000 hours at maximum operating temperature and rated voltage, with reliability data backed by accelerated life testing.
Choosing our high-voltage door-handle capacitors ensures predictable, long-term stable operation for your industrial microwave equipment, keeping your production line running without interruption.
