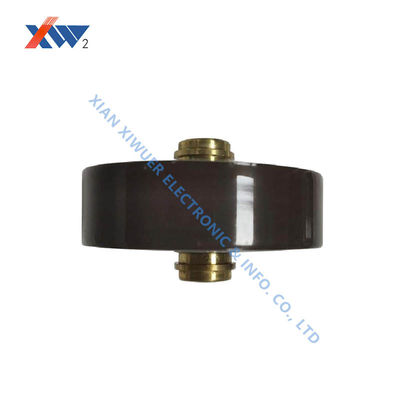

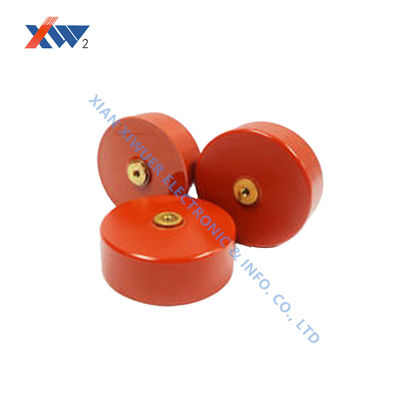

Low Dissipation High Voltage Doorknob Capacitor with High Withstanding Voltage and Insulation Resistance for RF Power Supply

  • Low Dissipation High Voltage Doorknob Capacitor with High Withstanding Voltage and Insulation Resistance for RF Power Supply
  • Low Dissipation High Voltage Doorknob Capacitor with High Withstanding Voltage and Insulation Resistance for RF Power Supply
  • Low Dissipation High Voltage Doorknob Capacitor with High Withstanding Voltage and Insulation Resistance for RF Power Supply
Menşe yeri XIAN, SHANNXI ÇİN
Marka adı XIWUER
Sertifika ISO9001,ISO14001,OHSAS18001
Model numarası CT8-1-40KV-150PF
Min sipariş miktarı 1 parça
Fiyat pazarlık edilebilir
Ambalaj bilgileri Karton
Teslim süresi 10-15 gün
Ödeme koşulları L/C, T/T
Yetenek temini Yılda 4.000.000 adet

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Vurgulamak

Low Dissipation High Voltage Doorknob Capacitor

,

High Withstanding Voltage RF Power Supply Capacitor

,

High Insulation Resistance HV Doorknob Capacitor
Mesaj bırakın
Ürün Açıklaması
High Voltage Doorknob Capacitors for RF Power Supply
Technical Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
Application in PECVD Equipment
Our high-voltage doorknob capacitors provide stable high voltage for Plasma-Enhanced Chemical Vapor Deposition (PECVD) equipment, essential for semiconductor, photovoltaic, and optical coating industries. These capacitors enable low-temperature deposition of high-quality thin films by maintaining stable, uniform plasma through efficient RF power supply performance.
Technical Challenges Addressed
  • Impedance Matching: Efficient power coupling to dynamically changing plasma loads
  • High RF Power Handling: Withstands electrical stresses from high frequency and voltage
  • Thermal Management: Minimizes heat accumulation from dielectric and electrode losses
  • Long-term Stability: Prevents capacitance drift that affects deposition rate and film quality
Solution: High-Q, Low-ESR Doorknob Capacitors
  • Efficient Power Transfer: Low ESR minimizes heat generation with high RF currents
  • Thermal Stability: Temperature-compensated ceramic dielectric maintains stable capacitance
  • High Reliability: Rugged construction ensures long service life in demanding RF conditions
Customer Benefits
  • Improved film quality and consistency through stable impedance matching
  • Increased productivity and yield with reduced process interruptions
  • Lower operating costs from reduced energy consumption and maintenance
Our high-voltage doorknob capacitors serve as the "impedance harmonizer" for PECVD equipment, enabling precise atomic-level deposition for superior thin film production.
