High Voltage Ceramic Doorknob Capacitors 20kV-2000pF 20kV-10000pF 20kV-18000pF for Non-destructive Testing Equipment

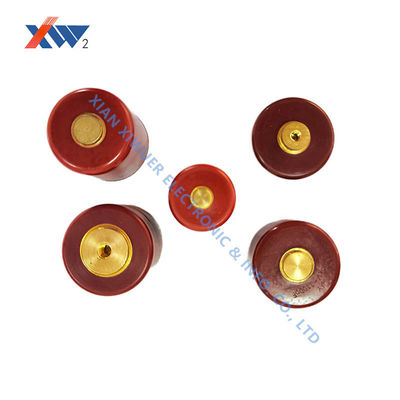

  • High Voltage Ceramic Doorknob Capacitors 20kV-2000pF 20kV-10000pF 20kV-18000pF for Non-destructive Testing Equipment

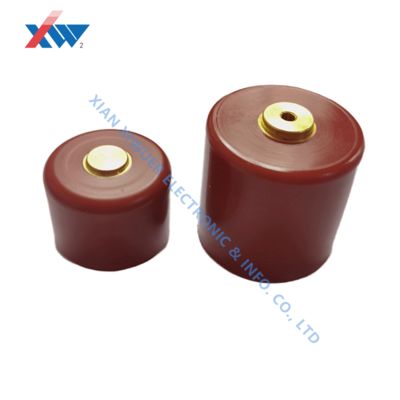

  • High Voltage Ceramic Doorknob Capacitors 20kV-2000pF 20kV-10000pF 20kV-18000pF for Non-destructive Testing Equipment

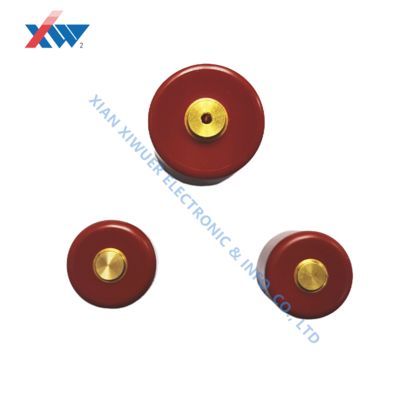

  • High Voltage Ceramic Doorknob Capacitors 20kV-2000pF 20kV-10000pF 20kV-18000pF for Non-destructive Testing Equipment
Menşe yeri XIAN, SHANNXI ÇİN
Marka adı XIWUER
Sertifika ISO9001,ISO14001,OHSAS18001
Model numarası CT8-1-30KV-1000PF
Min sipariş miktarı 1 parça
Fiyat pazarlık edilebilir
Ambalaj bilgileri Karton
Teslim süresi 10-15 gün
Ödeme koşulları L/C, T/T
Yetenek temini Yılda 4.000.000 adet

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Vurgulamak

20kV-2000pF High Voltage Ceramic Capacitor

,

20kV-10000pF Doorknob Capacitor

,

20kV-18000pF HV Ceramic Capacitor
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Mesaj bırakın
Ürün Açıklaması
High-voltage Door Handle Capacitors: Safeguarding Nondestructive Testing Equipment
Product Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
Long-Term Reliability for Industrial Applications

Tens of thousands of exposures with consistent performance: Our high-voltage door handle capacitors ensure reliable operation of non-destructive testing equipment through repetitive testing cycles. Automated production lines subject equipment to continuous high-frequency charge and discharge cycles, placing extreme demands on capacitor durability.

Key Durability Considerations

The primary concerns for equipment manufacturers and end users include:

  • Ability to withstand millions of charge and discharge cycles
  • Minimal capacitance value degradation over time
  • Consistent performance in high-temperature environments
Engineering for Longevity

Our high-voltage door handle capacitors incorporate advanced materials science and processing techniques:

  • Aging-resistant ceramic dielectric: Optimized barium strontium titanate-based material with doping process to suppress dielectric aging
  • Strengthened electrode interface: Advanced co-firing process creates durable bond between metallized electrodes and ceramic dielectric
  • Superior thermal management: Low dissipation (DF) combined with metal casing design maintains optimal operating temperatures
Performance Guarantee

Based on accelerated life testing data, we guarantee:

  • Over one million full-load charge/discharge cycles at rated voltage and maximum operating temperature
  • Capacity degradation rate of less than 5%
  • Consistent testing performance throughout equipment lifecycle

Choosing our high-voltage door handle capacitors ensures long-term, stable operation in demanding industrial environments, maintaining equipment performance at optimal levels.
