High Voltage Doorknob Capacitor 20kV-2000pF Efficiency Multiplier for Electrostatic Dust Removal and Spraying/Coating

  • High Voltage Doorknob Capacitor 20kV-2000pF Efficiency Multiplier for Electrostatic Dust Removal and Spraying/Coating
  • High Voltage Doorknob Capacitor 20kV-2000pF Efficiency Multiplier for Electrostatic Dust Removal and Spraying/Coating
  • High Voltage Doorknob Capacitor 20kV-2000pF Efficiency Multiplier for Electrostatic Dust Removal and Spraying/Coating
Menşe yeri XIAN, SHANNXI ÇİN
Marka adı XIWUER
Sertifika ISO9001,ISO14001,OHSAS18001
Model numarası CT8-2-20kV-2000pF
Min sipariş miktarı 1 parça
Fiyat pazarlık edilebilir
Ambalaj bilgileri Karton
Teslim süresi 10-15 gün
Ödeme koşulları L/C, T/T
Yetenek temini Yılda 4.000.000 adet

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Vurgulamak

Efficiency Multiplier High Voltage Doorknob Capacitor

,

Electrostatic Dust Removal Ceramic Doorknob Capacitor

,

Electrostatic Spraying/Coating HV Doorknob Capacitor
Mesaj bırakın
Ürün Açıklaması

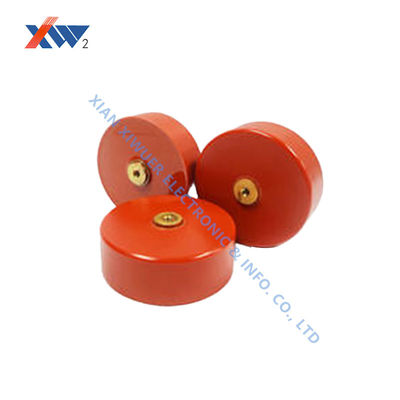

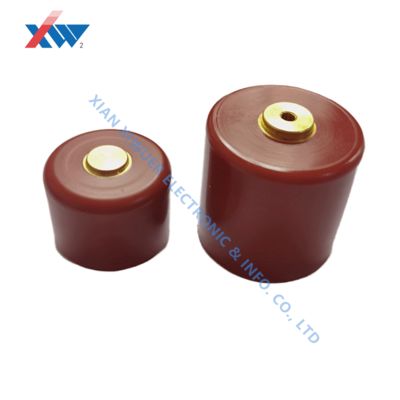

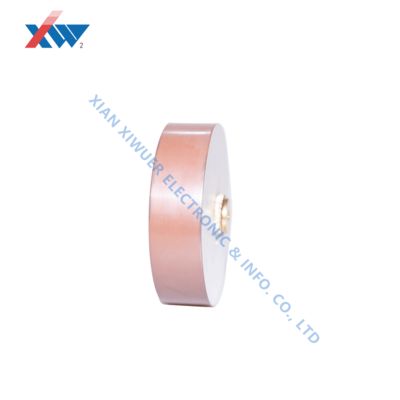

High Voltage Doorknob Capacitors: CT8-2-20kV-2000pF
Applications: Efficiency Multiplier, Electrostatic Dust Removal, Electrostatic Spraying/Coating
Product Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
Efficiency Multiplier: Dedicated Capacitor Solutions
Our high voltage doorknob capacitors provide optimized solutions for electrostatic precipitators and electrostatic spraying applications, where efficient and stable high-voltage electrostatic fields are critical.
Electrostatic Precipitator Applications
Essential for clean energy and green production in power plants, cement plants, and steel mills, where precipitator efficiency is crucial for meeting environmental standards.
Industry Challenges
  • Harsh operating conditions: High temperatures, dust levels, and potential corrosive gases
  • Extremely high operating voltages (40kV to 100kV+)
  • Continuous operation demands exceptional reliability
Our Solutions
  • High reliability and extended lifespan design matching dust collector overhaul cycles
  • Superior shock resistance for transient voltage surge protection
  • Complete high-voltage product line up to 100kV+ for simplified power supply design
Electrostatic Spraying/Coating Applications
Delivering superior surface finish quality in automotive, furniture, and consumer electronics industries.
Industry Challenges
  • Critical voltage stability requirements affecting coating uniformity
  • Demanding precision for flawless surface results
  • Compact, lightweight components for equipment integration
Our Solutions
  • Temperature-compensated ceramic dielectrics for stable capacitance
  • Low inductance and high-frequency characteristics for clean power output
  • Compact, high-energy-density design for equipment flexibility
