Industrial-grade High Voltage Doorknob Capacitor 20kV-2000pF 30kV-1000pF 40kV-150pF for Electrostatic Equipment

  • Industrial-grade High Voltage Doorknob Capacitor 20kV-2000pF 30kV-1000pF 40kV-150pF for Electrostatic Equipment
  • Industrial-grade High Voltage Doorknob Capacitor 20kV-2000pF 30kV-1000pF 40kV-150pF for Electrostatic Equipment
  • Industrial-grade High Voltage Doorknob Capacitor 20kV-2000pF 30kV-1000pF 40kV-150pF for Electrostatic Equipment
Menşe yeri XIAN, SHANNXI ÇİN
Marka adı XIWUER
Sertifika ISO9001,ISO14001,OHSAS18001
Model numarası CT8-1
Min sipariş miktarı 1 parça
Fiyat pazarlık edilebilir
Ambalaj bilgileri Karton
Teslim süresi 10-15 gün
Ödeme koşulları L/C, T/T
Yetenek temini Yılda 4.000.000 adet

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Vurgulamak

20kV-2000pF High Voltage Doorknob Capacitor

,

30kV-1000pF High Voltage Ceramic Capacitor

,

40kV-150pF Industrial Electrostatic Capacitor
Mesaj bırakın
Ürün Açıklaması

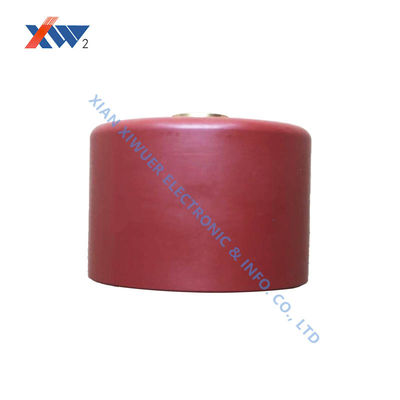

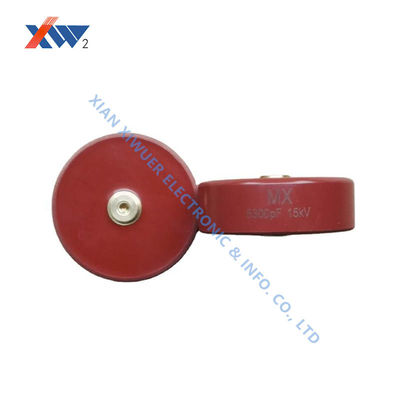

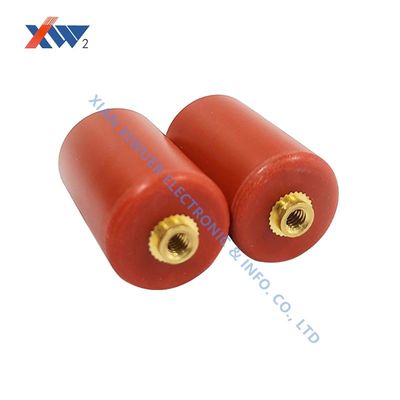

High Voltage Doorknob Capacitor
Industrial-grade electrostatic equipment component for applications such as electrostatic precipitators and electrostatic spraying systems.
Technical Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimension (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0*10⁵MΩ D | H | L | D | M
2 20kV-10000pF 45 19 23 12 | 5
3 20kV-18000pF 65 15 19 12 | 5
4 30kV-1000pF 80 17 25 12 | 5
5 30kV-2700pF 45 24 32 12 | 4
6 30kV-12000pF 60 20 28 12 | 4
7 40kV-150pF 20 33 41 8 | 4
8 40kV-500pF 28 33 41 8 | 4
9 40kV-7500pF 80 24 29 12 | 6
10 40kV-10000pF 80 22 26 16 | 5
11 50kV-1000pF 50 30 34 12 | 4
12 50kV-1000pF 32 27 31 16 | 5
13 50kV-5600pF 80 31 35 16 | 5
14 60kV-1500pF 50 31 34 12 | 5
15 60kV-3000pF 65 32 35 16 | 5
16 100kV-500pF 50 54 58 12 | 5
17 100kV-2000pF 51 32 35 16 | 5
18 Insulator type 100kV-1500pF 68 36 40 16 | 5
19 150kV-820pF 65 95 100 12 | 5
20 200kV-600pF 50 90 94 16 | 5
Industrial Performance Features
High-voltage ceramic capacitors serve as the stabilizing force in industrial electrostatic equipment, ensuring system efficiency and reliability through superior electrical characteristics and robust construction.
Unique Challenges in Industrial Applications
  • Sustained High-Voltage Stress: Capacitors must continuously withstand DC voltages close to their rated value, with any minor defect potentially causing dielectric breakdown.
  • Ripple Current and Thermal Management: Power inverter circuits generate ripple current that causes heating, requiring effective thermal management to prevent accelerated aging.
  • Harsh Industrial Environments: Components must withstand dust, humidity, temperature fluctuations, and potential chemical corrosion while maintaining reliability.
Engineered Solutions
  • Superior Dielectric Strength: Specially stabilized ceramic dielectric material provides DC breakdown field strength exceeding industry standards with low leakage current.
  • Optimized Thermal Performance: Unique electrode design and material formulation achieve extremely low loss tangent, minimizing heat generation.
  • Rugged Industrial Construction: Fully sealed epoxy potted structure resists moisture, dust, and chemicals with reinforced terminal connections for vibration resistance.
